AST::Union Class Reference

union definition. More...

#include <Union.h>

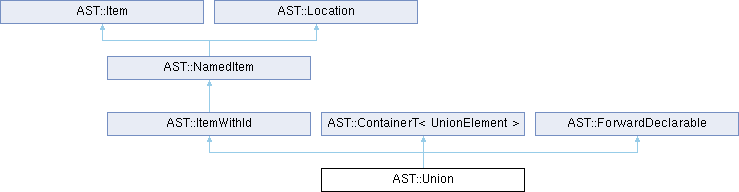

Inheritance diagram for AST::Union:

Public Member Functions
const Type &	discriminator_type () const noexcept
const Variant &	default_label () const noexcept
const UnionElement *	default_element () const noexcept
	operator const StructBase & () const noexcept
Public Member Functions inherited from AST::ItemWithId
std::string	repository_id () const
Public Member Functions inherited from AST::NamedItem
const Identifier &	name () const noexcept
const ItemScope *	parent () const noexcept
std::string	qualified_name () const
ScopedName	scoped_name () const
const Symbols *	parent_scope () const noexcept
Public Member Functions inherited from AST::Item
Kind	kind () const noexcept
bool	is_type () const noexcept
bool	is_forward_decl () const noexcept
Public Member Functions inherited from AST::Location
const std::filesystem::path &	file () const noexcept
unsigned	line () const noexcept
Public Member Functions inherited from AST::ForwardDeclarable
bool	has_forward_dcl () const

Additional Inherited Members
Public Types inherited from AST::Item
enum class	Kind {   ROOT , INCLUDE , NATIVE , TYPE_DEF ,   CONSTANT , MODULE , MODULE_ITEMS , INTERFACE_DECL ,   INTERFACE , OPERATION , PARAMETER , ATTRIBUTE ,   EXCEPTION , STRUCT_DECL , STRUCT , MEMBER ,   UNION_DECL , UNION , UNION_ELEMENT , ENUM ,   ENUM_ITEM , VALUE_TYPE_DECL , VALUE_TYPE , VALUE_BOX ,   STATE_MEMBER , VALUE_FACTORY }
	The kind of item. More...
Static Public Member Functions inherited from AST::ItemWithId
static const ItemWithId *	cast (const NamedItem *item) noexcept

Detailed Description

union definition.

Invariant

kind () == Item::Kind::UNION

Examples

Printer.cpp.

Definition at line 71 of file Union.h.

Member Function Documentation

discriminator_type()

const Type& AST::Union::discriminator_type ( ) const

inlinenoexcept

Returns

The discriminator type.

Definition at line 78 of file Union.h.

default_label()

const Variant& AST::Union::default_label ( ) const

inlinenoexcept

Returns

Default discriminator value.

Default label is different from the all declared labels. If no such value exists, the returned variant will be empty. If union has the default label, default_label is always non empty.

Definition at line 88 of file Union.h.

default_element()

const UnionElement* AST::Union::default_element ( ) const

inlinenoexcept

Returns

UnionElement for default label. If union does not have default label, returns nullptr.

Definition at line 95 of file Union.h.

operator const StructBase &()

AST::Union::operator const StructBase & ( ) const

inlinenoexcept

For convenience, the Union may be casted to const StructBase.

Returns

const StructBase&

Definition at line 103 of file Union.h.

---

The documentation for this class was generated from the following file:

• src/include/AST/Union.h
